1.1.2 Rear Panel

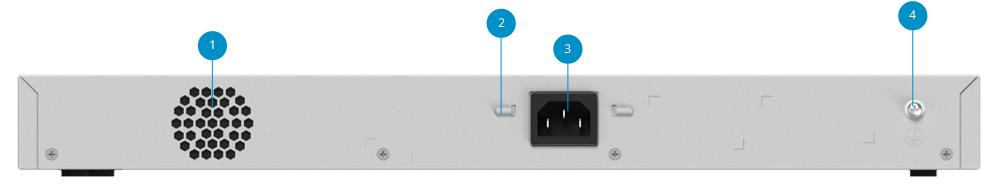

Figure1-3 Rear Panel of LS2-24GT4SFP-P

Table1-2 Rear Panel Description of LS2-24GT4SFP-P

No.	Name	Description
1	Ventilation openings	Used for heat dissipation.
2	Power cord retention clips holes	You can secure the power cord retention clip to the holes.
3	Three-hole AC power receptacle	Connected to an external AC power supply.
4	Grounding stud	You can secure the terminal of a grounding wire to the grounding stud to connect the chassis to earth ground.
